philote::ExplicitDiscipline Class Reference

Explicit discipline class. More...

#include <explicit.h>

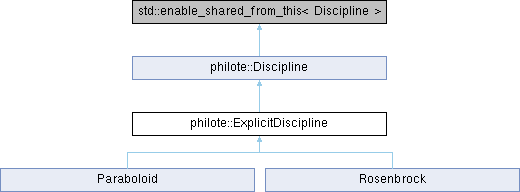

Inheritance diagram for philote::ExplicitDiscipline:

Public Member Functions
	ExplicitDiscipline ()
	Construct a new Explicit Discipline object.
	~ExplicitDiscipline () noexcept
	Destroy the Explicit Discipline object.
void	RegisterServices (grpc::ServerBuilder &builder)
	Registers all services with a gRPC channel.
virtual void	Compute (const philote::Variables &inputs, philote::Variables &outputs)
	Function evaluation for the discipline.
virtual void	ComputePartials (const philote::Variables &inputs, Partials &partials)
	Gradient evaluation for the discipline.
Public Member Functions inherited from philote::Discipline
	Discipline ()
	Construct a new Discipline object.
	~Discipline () noexcept
	Destroy the Discipline object.
std::map< std::string, std::string > &	options_list ()
	Gets the options list.
std::vector< philote::VariableMetaData > &	var_meta ()
	Accesses the variable meta data.
const std::vector< philote::VariableMetaData > &	var_meta () const noexcept
std::vector< philote::PartialsMetaData > &	partials_meta ()
	Accesses the partials meta data.
const std::vector< philote::PartialsMetaData > &	partials_meta () const noexcept
philote::DisciplineProperties &	properties ()
	Gets the discipline properties.
philote::StreamOptions &	stream_opts ()
	Gets the stream options.
const philote::StreamOptions &	stream_opts () const noexcept
void	AddInput (const std::string &name, const std::vector< int64_t > &shape, const std::string &units)
	Declares an input.
void	AddOutput (const std::string &name, const std::vector< int64_t > &shape, const std::string &units)
	Declares an output.
void	DeclarePartials (const std::string &f, const std::string &x)
	Declare a (set of) partial(s) for the discipline.
void	AddOption (const std::string &name, const std::string &type)
	Add an option to the discipline.
virtual void	Initialize ()
	Initialize function that sets up available options.
virtual void	Configure ()
	Configure function that is called after options are set.
virtual void	SetOptions (const google::protobuf::Struct &options_struct)
	Sets up all discipline options based on a protobuf struct that the server received from the client.
virtual void	Setup ()
	Setup function that is called by the server when the client calls the setup RPC.
virtual void	SetupPartials ()
	Setup function that is called by the server when the client calls the setup RPC.
void	SetContext (grpc::ServerContext *context) const noexcept
	Set the gRPC server context for cancellation detection.
void	ClearContext () const noexcept
	Clear the gRPC server context.
bool	IsCancelled () const noexcept
	Check if the current operation has been cancelled.

Additional Inherited Members
Protected Member Functions inherited from philote::Discipline
std::vector< int64_t >	ComputePartialShape (const std::string &f, const std::string &x, bool allow_output_as_x)
	Computes the shape for a partial derivative df/dx.
Protected Attributes inherited from philote::Discipline
std::map< std::string, std::string >	options_list_
	List of options that can be set by the client.
std::vector< philote::VariableMetaData >	var_meta_
	List of variable meta data.
std::vector< philote::PartialsMetaData >	partials_meta_
	List of partials meta data.
philote::DisciplineProperties	properties_
	Discipline properties.
philote::StreamOptions	stream_opts_
	Stream options.
grpc::ServerContext *	current_context_ = nullptr
	Current gRPC server context for cancellation detection (mutable for const correctness)

Detailed Description

Explicit discipline class.

This class should be overriden by discipline developers. The basic discipline and explicit discipline servers are private member variables of this class and are registered to a gRPC connection together via the RegisterServers member function. The discipline developer should not have to interact further with these services.

Explicit disciplines compute direct function evaluations (f(x) = y) and optionally their gradients. They are suitable for analyses where outputs can be computed directly from inputs without solving implicit equations.

Example: Simple Explicit Discipline

#include <explicit.h>

class SimpleFunction : public philote::ExplicitDiscipline {
private:
    void Setup() override {
        AddInput("x", {1}, "m");
        AddOutput("y", {1}, "m");
    }

    void SetupPartials() override {
        DeclarePartials("y", "x");
    }

    void Compute(const philote::Variables &inputs,
                 philote::Variables &outputs) override {
        double x = inputs.at("x")(0);
        outputs.at("y")(0) = 2.0 * x + 1.0;
    }

    void ComputePartials(const philote::Variables &inputs,
                        philote::Partials &partials) override {
        partials[{"y", "x"}](0) = 2.0;
    }
};

Example: Multi-Input/Output Discipline

class Paraboloid : public philote::ExplicitDiscipline {
private:
    void Setup() override {
        AddInput("x", {1}, "m");
        AddInput("y", {1}, "m");
        AddOutput("f_xy", {1}, "m**2");
    }

    void SetupPartials() override {
        DeclarePartials("f_xy", "x");
        DeclarePartials("f_xy", "y");
    }

    void Compute(const philote::Variables &inputs,
                 philote::Variables &outputs) override {
        double x = inputs.at("x")(0);
        double y = inputs.at("y")(0);
        outputs.at("f_xy")(0) = std::pow(x - 3.0, 2.0) + x * y +
                                std::pow(y + 4.0, 2.0) - 3.0;
    }

    void ComputePartials(const philote::Variables &inputs,
                        philote::Partials &partials) override {
        double x = inputs.at("x")(0);
        double y = inputs.at("y")(0);
        partials[{"f_xy", "x"}](0) = 2.0 * x - 6.0 + y;
        partials[{"f_xy", "y"}](0) = 2.0 * y + 8.0 + x;
    }
};

Example: Discipline with Options

class ConfigurableDiscipline : public philote::ExplicitDiscipline {
private:
    double scale_factor_ = 1.0;

    void Initialize() override {
        ExplicitDiscipline::Initialize();
        AddOption("scale_factor", "float");
    }

    void Configure() override {
        // Options are set before Configure is called
        // Access via discipline properties if needed
    }

    void Setup() override {
        AddInput("x", {1}, "m");
        AddOutput("y", {1}, "m");
    }

    void Compute(const philote::Variables &inputs,
                 philote::Variables &outputs) override {
        outputs.at("y")(0) = scale_factor_ * inputs.at("x")(0);
    }
};

Example: Starting a Server

#include <grpcpp/grpcpp.h>

int main() {
    std::string address("localhost:50051");
    Paraboloid discipline;

    grpc::ServerBuilder builder;
    builder.AddListeningPort(address, grpc::InsecureServerCredentials());
    discipline.RegisterServices(builder);

    std::unique_ptr<grpc::Server> server = builder.BuildAndStart();
    std::cout << "Server listening on " << address << std::endl;
    server->Wait();

    return 0;
}

Note

Thread Safety: This class is NOT inherently thread-safe. Concurrent calls to Compute or ComputePartials from multiple RPC handlers will access the same instance without synchronization. User-defined implementations should add appropriate locks if they modify shared state or if thread safety is required.

See also

philote::ExplicitClient

philote::ImplicitDiscipline

Constructor & Destructor Documentation

ExplicitDiscipline()

philote::ExplicitDiscipline::ExplicitDiscipline

(

)

Construct a new Explicit Discipline object.

~ExplicitDiscipline()

philote::ExplicitDiscipline::~ExplicitDiscipline ( )

noexcept

Destroy the Explicit Discipline object.

Member Function Documentation

Compute()

virtual void philote::ExplicitDiscipline::Compute ( const philote::Variables &  inputs, philote::Variables &  outputs  )

virtual

Function evaluation for the discipline.

This function should be overridden by the developer of the discipline.

Parameters

inputs

input variables for the discipline (continuous and discrete)

Returns

philote::Variables

ComputePartials()

virtual void philote::ExplicitDiscipline::ComputePartials ( const philote::Variables &  inputs, Partials &  partials  )

virtual

Gradient evaluation for the discipline.

This function should be overridden by the developer of the discipline, if applicable (not every discipline can provide partials).

Parameters

inputs

input variables for the discipline (continuous and discrete)

RegisterServices()

void philote::ExplicitDiscipline::RegisterServices

(

grpc::ServerBuilder &

builder

)

Registers all services with a gRPC channel.

Parameters

builder

---

The documentation for this class was generated from the following file:

• /home/runner/work/Philote-Cpp/Philote-Cpp/include/explicit.h
